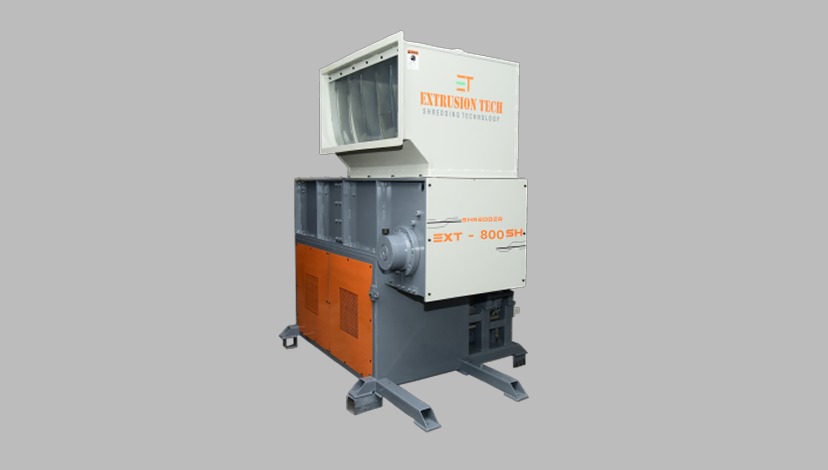

SINGLE SHAFT SHREDDER EXT 800 SH SOLID ROTOR (WITH STATIONARY HOPPER)

OPERATION

👉 Single shaft shredder operates on heterogeneous medium hard material by impact, cut, and brake process.

👉 The shredding process works on a rotor-stator device. Materials are fed into the hopper, from where they drop into the shredding chamber.

👉 Following machine start, the material is advanced by a plate moved by a hydraulic pusher, which pushes it against the rotor.

👉 This configuration allows the shredder to handle even large pieces, which remain in the shredding compartment until they reach the correct dimensions to pass through the screen.

👉 The rotor shaft is driven by an electric motor connected to a gearbox. The bottom part of the shredder is closed off by a screen grid, and the shredded material dimensions can be pre-selected based on the screen assembly.

👉 The Single Shaft Shredder is ideal for reducing the size of various plastic materials such as purging/lumps, profiles, heavy wall thickness pipe cut pieces, plastic moldings, and more.

SHREDDER EXT 800 SH VIDEO

Technical Description

Model	EXT 800 SH
Rotor length	800 mm
Rotor dia (solid rotor)	300 Ø
Rotor speed	72 RPM
Drive motor (Siemens)	40HP
Gear box (Zeal Make)	160 SIZE Helical gear box
Number for rotary blade	48 no’s
Number of stationary blade	6 no’s
Screen size	50 Ø
Hydraulic power pack (Reputed make)	5HP
Control Panel (Reputed make)	Suitable control panel with reputed make components will be provided
Production	250–300 Kgs for solid and for hollow depending upon material feeding
